1.
Core performance and technical features 1.
Parallel light path optical system with good scalability SMZ18 adopts a parallel light path stereo microscope structure.
The two observation light paths are imaged through a common main objective lens.
It is suitable for use with epifluorescence accessories, coaxial illumination, polarizing accessories, dark field illumination, camera interfaces and intermediate magnification modules.
Compared with Greenough stereo microscopes, the parallel light path structure is more suitable for scientific research-level expansion and digital imaging applications.
The system can be configured with different objectives, lens tubes, lighting bases and imaging accessories according to experimental needs, and is suitable for a variety of scenarios such as life science sample observation, micromanipulation and industrial inspection. 2. 18:1 large zoom ratio and high-resolution observation The main unit zoom range of SMZ18 is 0.75X to 13.5X, and the zoom ratio is 18:1.
Combined with the 10X eyepiece and objective lenses of different magnifications, it can cover a variety of observation needs from observing the entire sample to magnifying local details.
When paired with SHR Plan Apo series objectives, SMZ18 can achieve higher numerical aperture and better resolution performance.
For example, the numerical aperture of the 1X Plan Apo objective lens can reach NA 0.15, and the numerical aperture of the 2X Plan Apo objective lens can reach NA 0.30, which is suitable for observing zebrafish, fruit flies, nematodes, mouse embryos, plant samples, and fine structure samples. 3.
Perfect Zoom System and stable zoom observation SMZ18 adopts Nikon Perfect Zoom System, which can optimize the optical performance of the left and right optical paths during the zoom process, so that it can maintain good resolution and image quality at different magnifications.
This design helps to quickly locate samples at low magnification and observe details at high magnification, and is suitable for scientific research observation and micromanipulation processes that require frequent magnification changes. 4.
Apochromatic objective lens and flat and clear imaging SMZ18 can be used with Nikon SHR Plan Apo apochromatic objective lens, including 0.5X, 1X, 1.6X, 2X and other configurations.
This series of objectives performs well in chromatic aberration correction, flat field performance and resolution, can reduce edge aberration and color deviation, and is suitable for bright field observation, fluorescence observation and digital image collection. 5.
Epi-fluorescence observation expansion capability SMZ18 can be configured with epi-fluorescence accessories for observation of fluorescently labeled samples such as GFP and RFP.
The fluorescence accessory has a built-in compound eye lens, which helps improve the uniformity of excitation light illumination and improves the signal-to-noise ratio of fluorescence imaging.
The system can be installed with up to 4 fluorescence filter blocks, which is suitable for transgenic screening, observation of fluorescence expression of model organisms, and multi-channel fluorescence sample recording. 2.
Typical application fields Application scenarios: Developmental biology and genetics Applicable businesses: Observation of model organisms such as zebrafish, fruit flies, nematodes, mouse embryos, screening of transgenic individuals, observation of fluorescent marker expression Application scenarios: Microoperation and sample processing Applicable businesses: Microinjection, embryo manipulation, tissue separation, cell or small biological sample manipulation, microfluidic chip observation Application scenarios: Living samples and large-field observation Applicable businesses: Living small animal observation, plant sample observation, transparent sample observation, overall morphological recording of cultured samples Application scenario: Materials and industrial testing Applicable businesses: electronic component observation, microstructure inspection, defect analysis, precision assembly inspection, micro-nano structure appearance evaluation 3.
Application selection guidance Nikon SMZ18 is suitable for scientific research and inspection users who require a large zoom range, high-resolution observation and fluorescence expansion capabilities.
For developmental biology, genetics, model organism screening, micromanipulation, and basic fluorescence observation, the SMZ18 provides a good balance between wide-field positioning, detail amplification, and image recording.

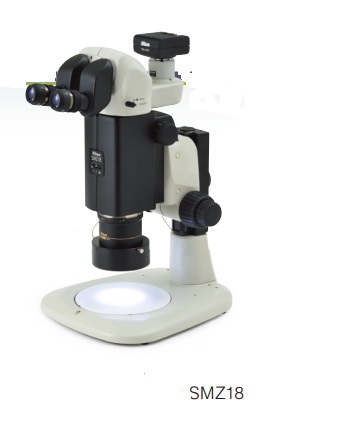

Nikon SMZ18 is a research-grade parallel light path continuous zoom stereo microscope, suitable for life science research, model organism observation, fluorescence screening, micromanipulation and fine observation of industrial samples.
This model adopts Nikon's parallel light path optical system and apochromatic optical design.
It has a large zoom ratio of 18:1, high numerical aperture and good fluorescence observation expansion capabilities, and can flexibly switch between observing a larger sample range and amplifying local details.
