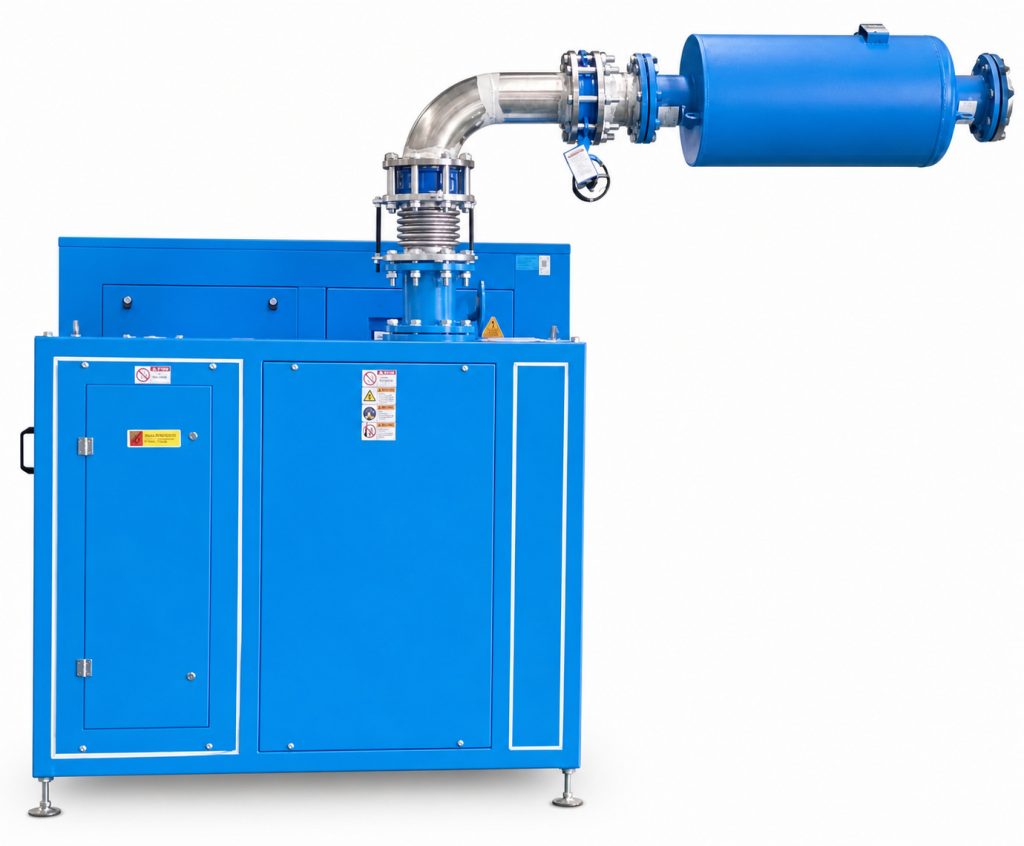

Cuihe provides enterprises with information on air suspension centrifugal blowers, air suspension centrifugal blower prices, and air suspension centrifugal blower parameters.
Product advantages: 1.
Energy saving and high efficiency.
It adopts a high-speed motor direct drive structure, with a transmission efficiency close to 100%, and combines a number of core technologies.
Compared with traditional Roots blowers, ACB high-speed centrifugal blowers can save about 35% of energy. 2.
Low noise and low vibration: The operating noise of the equipment is less than 80 decibels, the operating vibration is less than 1mm/s, and the operation is smoother and quieter. 3. 100% oil-free.
It eliminates the oily bearings and gear speed-increasing structures required by traditional blowers.
There is no need to use lubricating oil, making maintenance more convenient and running cleaner. 4.
Highly integrated and easy to install.
The host, electrical system and control system are highly integrated, with simple structure, small size, light weight and easy installation. 5.
Simple operation and intelligent control.
The intelligent control system can monitor the operating status of the equipment in real time and supports remote control, which can effectively prevent equipment overloading and damage. 6.
Mobile APP remote management You can view equipment operation information, warning records, consumable parameters and other data in real time through the mobile APP.
You can also remotely start and stop the equipment, adjust speed and other parameters.
Applicable scenarios: Environmentally friendly sewage treatment: It is suitable for biochemical tank aeration, regulating tank aeration, industrial wastewater treatment and other scenarios.
It can increase dissolved oxygen and reduce aeration energy consumption.
Aquaculture oxygenation: It is suitable for scenarios such as ponds, factory farming, circulating water systems, etc.
It can achieve centralized air supply and stable oxygenation.
Food brewing and biological fermentation: It is suitable for fermentation oxygen supply, clean process air supply, sewage aeration and other scenarios.
It can provide oil-free air and stable oxygen supply.
Powder transportation: It is suitable for powder, granular materials, silo fluidization, pipeline transportation and other scenarios.
It can achieve airtight transportation and reduce dust.
Textile printing and dyeing: It is suitable for printing and dyeing wastewater treatment, process auxiliary gas supply and other scenarios.
It can adapt to load fluctuations and achieve energy-saving operation.
Papermaking industry: It is suitable for paper mill sewage treatment, white water treatment and other scenarios.
It can continuously supply oxygen and reduce maintenance pressure.
Petrochemical industry: It is suitable for wastewater treatment, desulfurization and denitrification, backflush cleaning and other scenarios.
The operation is stable and reliable, and can reduce the risk of oil pollution.
Core technology: 1.
High-efficiency ternary flow impeller.
The ternary flow design theory is combined with CFD fluid simulation technology to ensure the high-efficiency performance of the product from the design.
The impeller is made of high-strength aviation aluminum material 7075 T651, which is suitable for high temperature and high pressure working conditions.
Through high-precision five-axis machining, the efficiency is higher.
The impeller is directly connected to the motor main shaft without transmission loss. 2.
High-speed permanent magnet synchronous motor uses electromagnetic field optimization design to maintain high efficiency in the full speed range, with a maximum efficiency of 97%, which is significantly better than traditional motors.
The design is improved according to actual load requirements, and the maximum rotation speed can reach 100,000 rpm.
It uses top aviation-grade materials, high-end permanent magnets and high-performance silicon steel sheets. 3.
Dynamic pressure air suspension bearing uses high-speed rotation to achieve its own suspension.
The new generation of Inconel corrugated foil bearings improves the support stiffness and load-bearing capacity of the bearings.
Through structural parameter optimization design and material selection, the problem of bearings prone to failure under high DN value and high operating temperature conditions is solved.
On/off tested over 50,000 times. 4.
Intelligent control system adopts advanced control system to meet various process needs of customers on site.
The special program for the centrifuge can accurately monitor system temperature, pressure, flow and other signals to ensure safe, stable and reliable system operation.
The system supports smart cloud control, on-site intelligent control and remote control functions, making equipment operation and maintenance more convenient and faster. 5.
High-speed special frequency converter Equipped with a high-speed special frequency converter, the maximum operating frequency can reach 1000Hz.
Adopting advanced space vector pulse width modulation technology, it can fully meet the driving requirements of high-speed centrifugal blowers.
It has complete motor overload protection function, high starting torque, high speed stabilization accuracy and wide speed regulation range. 6.
Precision filtration system realizes filter cotton replacement reminder function through pressure difference sensor.
The filtration precision is 5μm and the initial pressure difference is less than 100Pa, which can maintain efficient particle interception and low pressure loss, allowing the equipment to maintain continuous energy saving.
The filter cotton has a long service life and can extend the maintenance interval.
For technical communication in specific industries, please call us.
Stable gas supply, increased dissolved oxygen, clean and oil-free, energy-saving transformation, continuous operation
